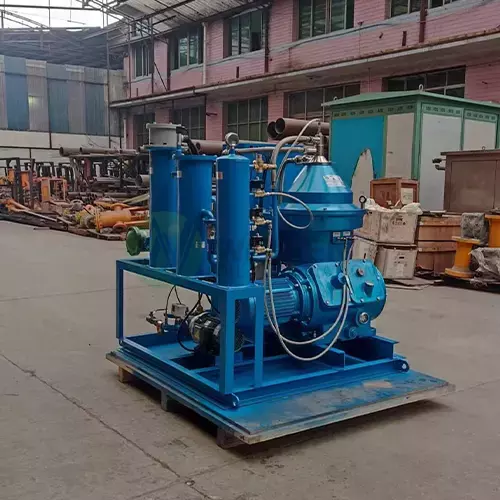

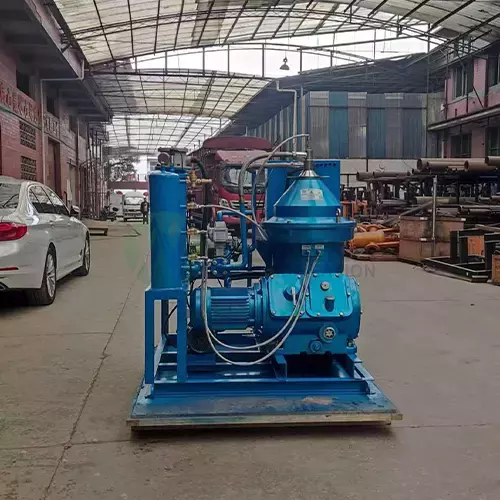

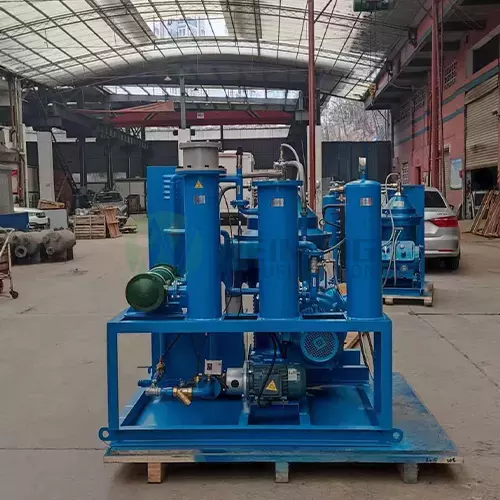

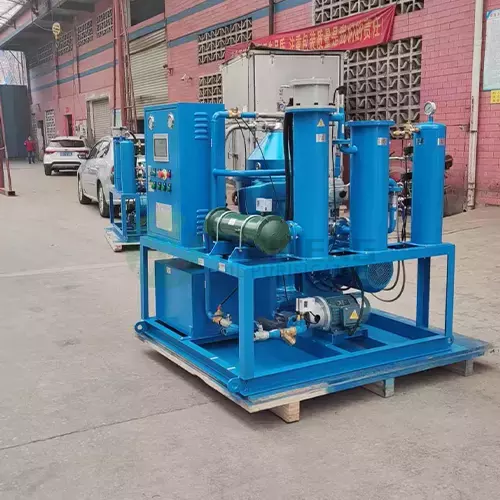

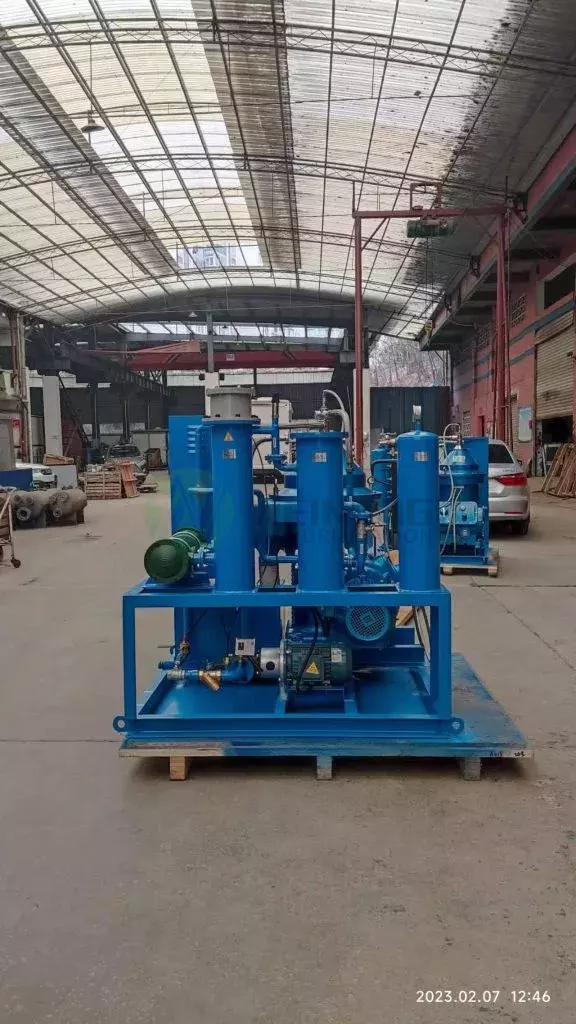

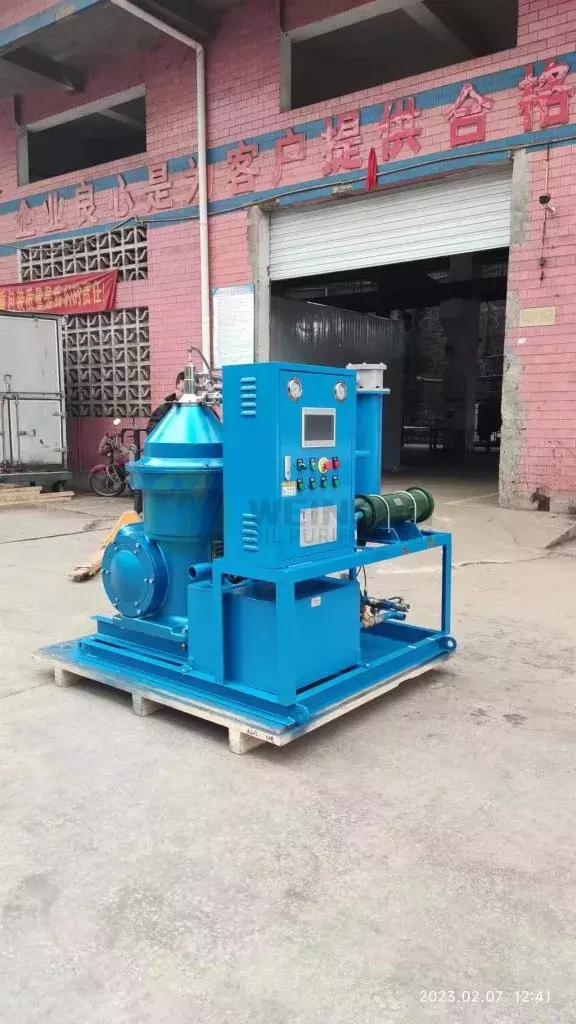

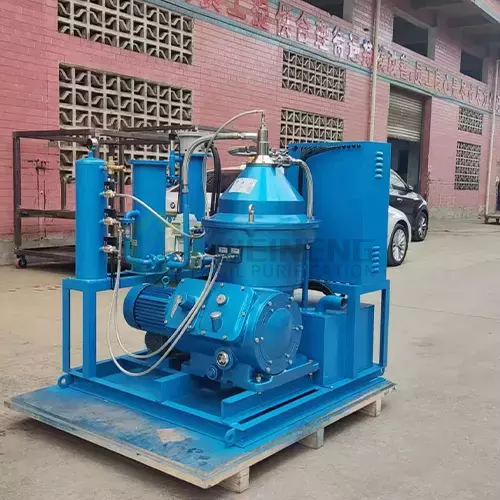

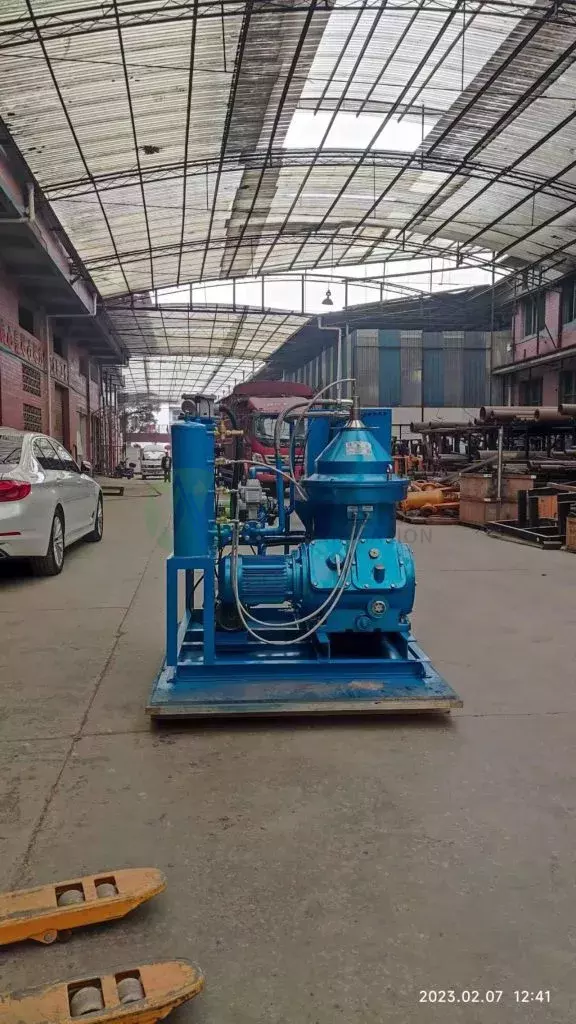

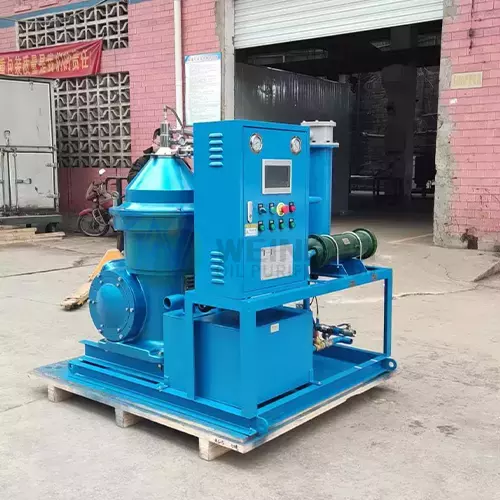

CWD Centrifugal Oil Purifier

Widely used for various types of machinery;
Compact design, it removes moisture, gas and particles from used oil;
Cooperation with international&domestic reputed brands;
Automatic control system, equipped with comprehensive protection mechanism;
Flow rate 1800LPH to 30000LPH or as requested;
13 Years of purifier manufacturing experience;
Customizable, moisture analyzer, particles counter, etc available;
2 years warranty, 7*24 hours technical support and after services.

For product pricing, customization, or other inquiries:

Description

| Applications

It is suitable for machinery manufacturing, metallurgy, mining, petroleum, chemical industry, electric power, transportation, railway and other industries. It is applied to recover and purify various unqualified industrial oils, especially oil containing large amounts of water or impurities, such as emulsified hydraulic oil, turbine oil, etc. With a centrifugal system, could remove massive water or impurities quickly and efficiently. Combined with the vacuum system, it could achieve the purpose of high-precision filtration results. After treatment, the oil quality index is enhanced and restored.
Through the special design of the vacuum separation system and the impurity filtration system, the moisture, gas, impurities and volatiles in the lubricating oil can be effectively removed. Improve oil quality, and restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of the hydraulic system, power system and lubrication system.

| Features

Integrate centrifugal dehydration method and filtration technology; completely and highly efficiently and completely remove liquid water and 80% trace water.
Distinctive impurities-removing technology, combined with a double FH Trapezoidal network and absorbing by high polymer material without mechanical power.
With WEINENG’s unique automatic foam controlling system, oil gas corrosion can be avoided as well as smooth operation of the whole oil treatment procedure
Equipped with Double electromagnetic valves, overflow valve and a double infrared liquid level control system, to realize automatic oil inlet and outlet, to realize fully automatic operation and no person on duty.
Trinity inter-locked preventive device, provides effective over-voltage protection, oil leakage protection and dry-heating protection.
Equipped with comprehensive protection mechanisms, such as power protection, pressure protection, and motor overload protection. If any protection mechanism is triggered, the machine will stop working automatically.

| Specifications

	Model	CWD-10	CWD-20	CWD-30	CWD-50	CWD-100	CWD-150	CWD-200	CWD-300
	Unit	CWD-10	CWD-20	CWD-30	CWD-50	CWD-100	CWD-150	CWD-200	CWD-300
Flow rate	L/Hr	600	1200	1800	3000	6000	9000	12000	18000
Vacuum degree	Mpa	-0.06 ~ – 0.095
Working Pressure	Mpa	≤0.4
Temperature Degree	℃	0 ~ 100
Power Supply		380V,3phase, 50HZ (or as required by customer)
Working noise	DB (A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80	≤82
Electric heating Power	KW	18	18	24	30	54	72	90	120
Total electric Power	KW	19.3	19.3	25.65	32	57.1	79	98	130
Inlet (outlet) Caliber	mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф50	Ф50	Ф60
Size（L* W*H)	mm	1260x 900x	1260x 900x 1600	1500x 1050×1650	1600x 1150x	1750x 1250x	1900x 1600x	1900x 1700x	2100x 1700x
Size（L* W*H)	mm	1500	1260x 900x 1600	1500x 1050×1650	1700	1800	1950	2000	2100
Weight	Kg	450	550	600	750	850	1000	1200	1500

| Working Principle

The machine is equipped with a heating system, centrifugal system, and filtration system.
By the power of the inlet pump, oil flows into the machine, and the primary filter helps to remove the big-size particles.
Then oil flows into the heating system, and oil will be heated up.
After heating up, oil flows into a centrifugal system, and massive liquid water or impurities will be removed.
Then oil flow by the fine filter to remove tiny particles, and comes out by the outlet tube.
Could be repeated filtration to achieve more higher filtration precision.

| Why You Need a CYD Centrifugal Oil Purifier?

Lubricating oil is a technology-intensive product, a complex mixture of hydrocarbons, and its real application function is the combined effect of complex physical or chemical change processes. The fundamental functions of lubricating oil include general physical and chemical functions, special physical and chemical functions and simulated bench experiments. On various types of machinery, to reduce friction and maintain liquid lubricants for machinery and processed parts, it mainly plays the role of lubrication, cooling, rust prevention, cleaning, sealing and buffering. Lubricating oil accounts for 85% of all lubricating materials, and there are many varieties and brands. At present, the annual consumption in the world is about 38 million tons.
Moisture and gas in the air seep into the oil due to system leakage, poor sealing, long-term thermal load of the oil, open oil storage, etc., resulting in water and gas in the oil.
Due to the leakage of the system, the entry of particles and dust in the air or the falling off of the system wear and tear, and the operation of the oil under high temperature and water for a long time will inevitably lead to part of the oil cracking and degenerating to separate colloidal substances.
During usage, various lubricating oils are exposed to the air or because of their working environment, resulting in the mixing of moisture, gas and metal impurities, which reduces the quality of the oil
The functional index of lubricating oil depends to a large extent on the water content, gas content in the oil, impurities in the oil and the pollution degree of the oil. To enhance the lubricating function of the oil, the oil must be dehydrated, degassed, and impurities removed under the rated vacuum degree and temperature. Then it is necessary to use a special WEINENG CWD series to filter the lubricating oil, to ensure the function of the lubricating oil.
