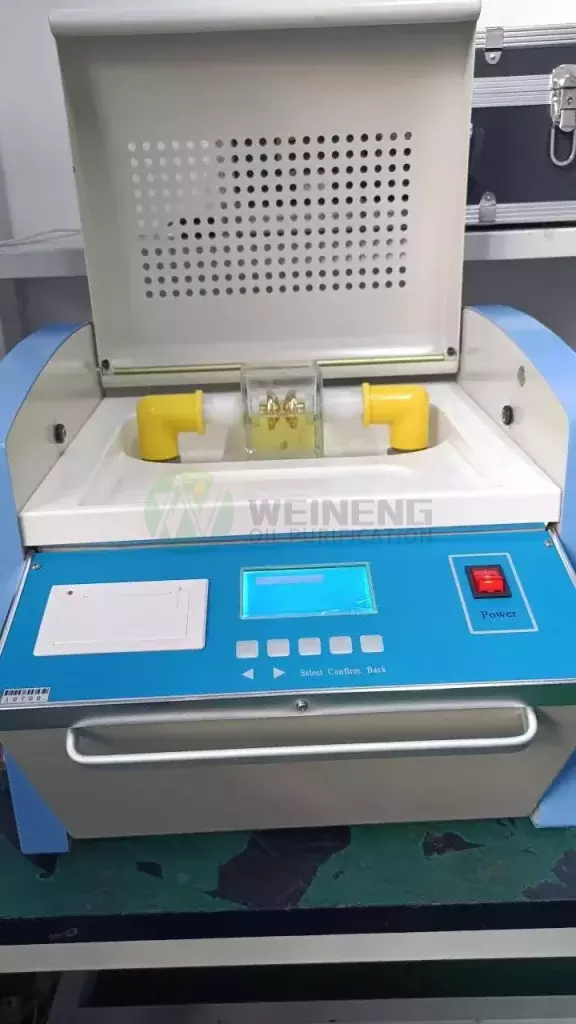

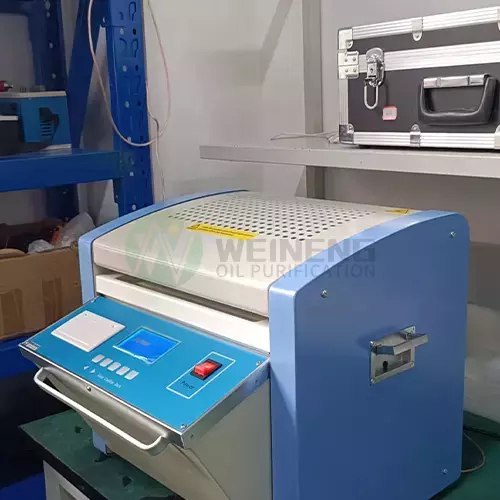

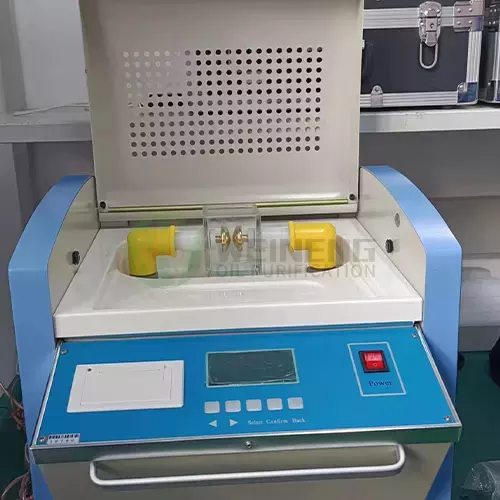

IIJ-II-60 Breakdown Oil Tester

  • Widely used for industrial oil from transformers, machineries, turbines etc;
  • 0-60KV, 0-80KV, and 0-100KV available;
  • Automatic control system, equipped with comprehensive protection mechanism;
  • 13 Years of purifier manufacturing experience;
  • 1-year warranty, 7*24 hours technical support and after services.

For product pricing, customization, or other inquiries:

Description

| IIJ-II Series Oil BDV Testing Equipment

| Applications

  • IIJ-II Series Transformer Oil Dielectric Strength Tester is specially designed for testing dielectric strength(Breakdown Voltage) of transformer oil.
  • In the electric power system, the insulation oil is widely applied in many insulation electric equipment. The breakdown voltage (dielectric strength) is one of the most important parameters, it is a rule of the voltage withstand. The value of breakdown voltage (dielectric strength) indicates whether the oil contains water, impurity and electric particles, and you’ll know the oil value via the breakdown voltage (dielectric strength).
  • IIJ-II Series Transformer Oil Dielectric Strength Tester provides repeatable, accurate measurement of breakdown voltage of insulating oils used in electrical equipment. These versatile, light weight units have been designed for both field and laboratory use
  • IIJ-II Series Transformer Oil Dielectric Strength Tester is designed as per the standard of IEC156 dielectric strength of insulating oil. This product adopts an industrial single-chip control system, large-scale integrated circuit, new-style I/O interface, with unique inspection and anti-jamming techniques, which greatly improve the equipment performance and reliability.

| Features

  1. Simple operation, automatically (can be finished just press on key).

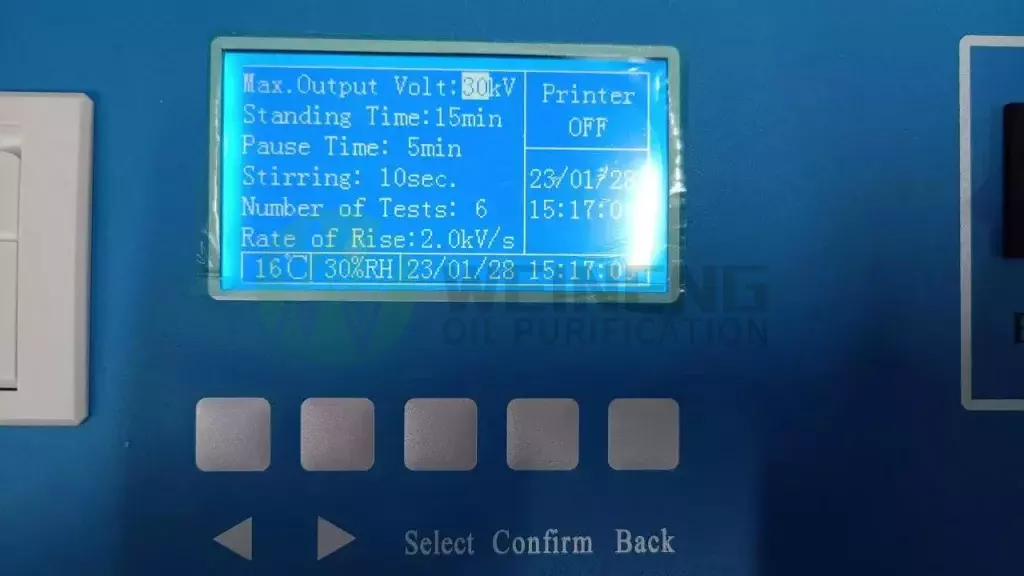

  2. Menu controlled. Input data is clear.
  3. Can store 99 groups of oil testing data, which is convenient for reading and printing. The testing data can be kept for 100 years under the condition of power off.
  4. System time can go on running under power off; (The system time is just for reference which can not be the standard of timing).
  5. High capacity of anti-jamming, high precision of testing.
  6. Small volume, light, which can be operated in the open air very conveniently.

| TECHNICAL DATA

  1. Power supply: AC220V ± 10%, 50HZ
  2. Output voltage: 80KV, 100KV
  3. Capacity: 1.6KVA, 2.0KVA
  4. Pressure increase speed: about 2KV/S
  5. Pressure testing speed: 3%
  6. Dielectric strength sensitivity: <2KV
  7. Wave form distortion: ≤3%
  8. Time of dielectric strength: ≤10ms
  9. Polar distance: 2.5mm
  10. Operational environment: Temperature:0℃-40℃, Humidity: the most relative humidity 85%
  11. Storage environment: Temperature: -20℃-60℃, Humidity: the most relative humidity 75%.
  12. Working altitude: <1500m (if over 1500m can be designed specially)

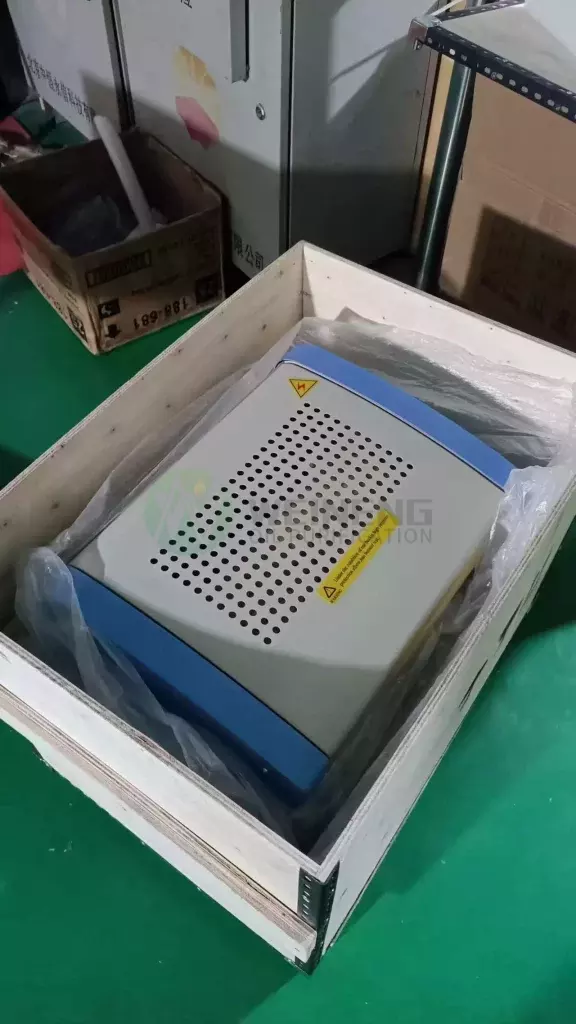

  13. Packing: Wooden Case

| Models Available

  1. IIJ-II-60 Series Transformer Oil Dielectric Strength Tester Testing range: 0 – 60KV
  2. IIJ-II-80 Series Transformer Oil Dielectric Strength Tester Testing range: 0 – 80KV
  3. IIJ-II-100 Series Transformer Oil Dielectric Strength Tester Testing range: 0 – 100KV
