TYA-50(3000LPH) Vacuum Hydraulic Oil Purifier

  • Widely used for various types of machinery;
  • Compact design, it removes moisture, gas and particles from used oil;
  • Cooperation with international&domestic reputed brands;
  • Automatic control system, equipped with comprehensive protection mechanism;
  • Flow rate 1800LPH to 30000LPH or as requested;
  • 13 Years of purifier manufacturing experience;
  • Customizable, moisture analyzer, particles counter, etc available;
  • 2 years warranty, 7*24 hours technical support and after services.

For product pricing, customization, or other inquiries:

Description

| Applications

  • It is suitable for machinery manufacturing, metallurgy, mining, petroleum, chemical industry, electric power, transportation, railway and other industries. Purification treatment.
  • Through the special design of the vacuum separation system and the impurity filtration system, the moisture, gas, impurities and volatiles in the lubricating oil can be effectively removed. Improve oil quality, and restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of the hydraulic system, power system and lubrication system.

| Features

  • Filtration System: Precision filter elements are adopted, which have a strong ability to filter impurities. The large-area and deep-level precision filter element can remove fine particles in the oil. With Three-stage filters, it can effectively protect the filters, and prolong the lifetime.
  • Super strong demulsification ability, advanced and unique degassing and dehydration system, using trinity evaporation technology, multi-level oil-water separation technology, quickly separate a large amount of water in oil, and can also remove trace water and gas in oil.
  • Advanced medium endothermic condensation system, automatic condensate separation device, automatic constant temperature control, infrared liquid level control, automatic overpressure shutdown protection device, backwash function and high-quality equipment accessories. To ensure the high-performance operation of the equipment, the operation is simple, safe and reliable.

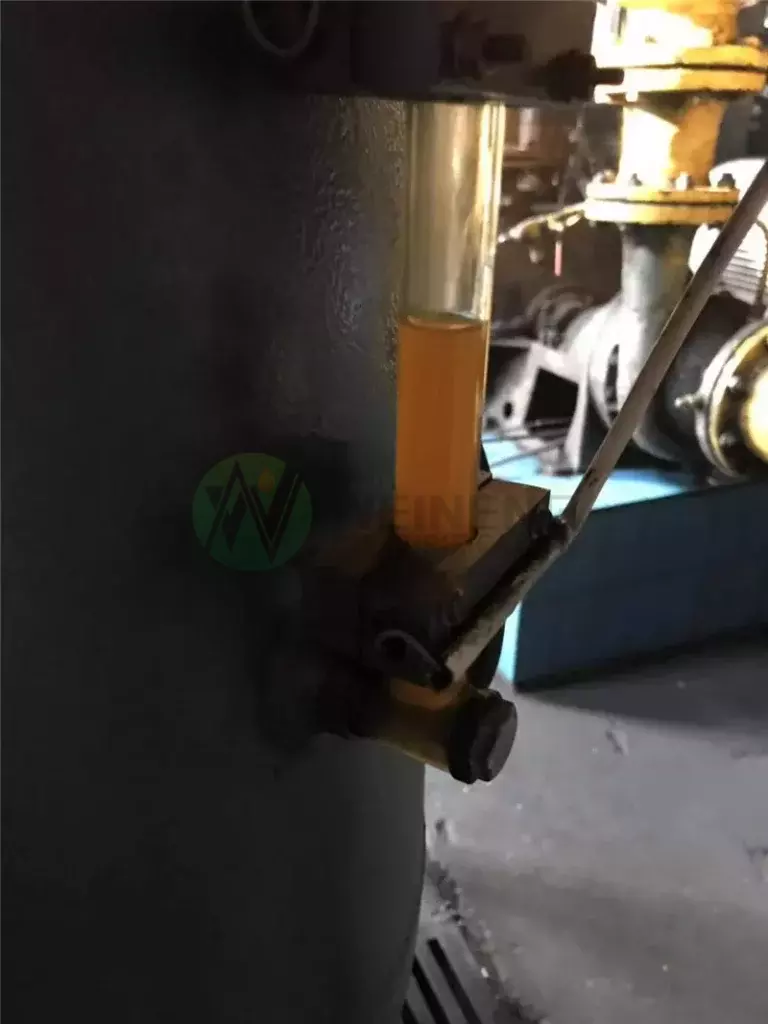

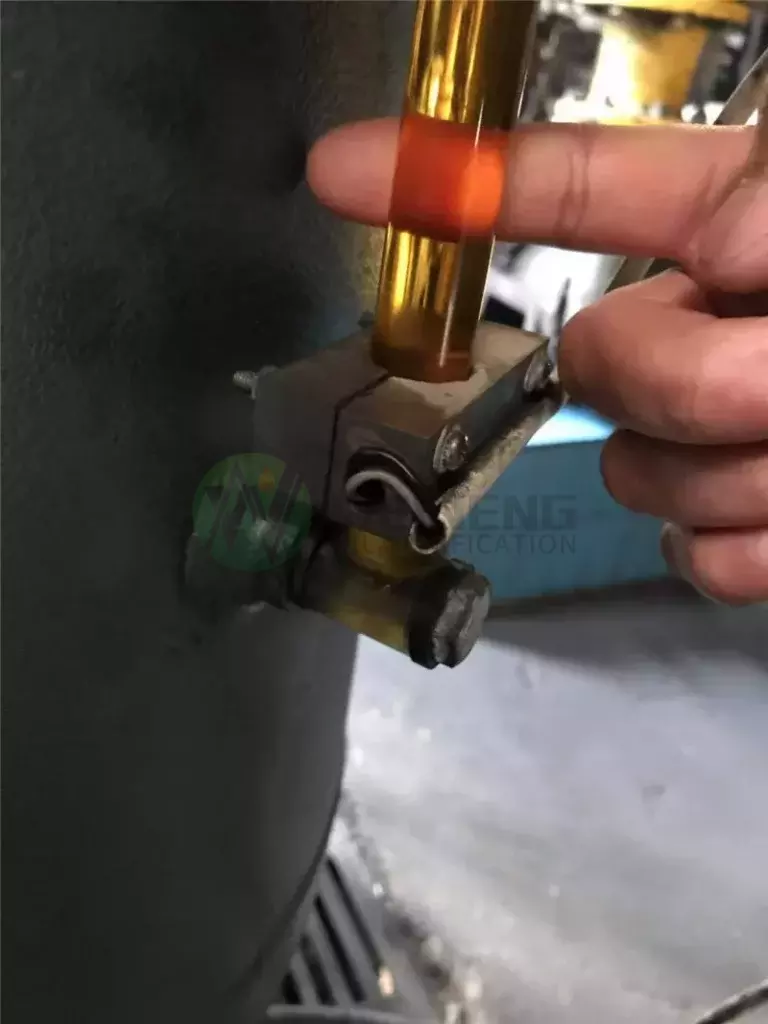

  • The infrared liquid level control system completely avoids the phenomenon of oil running, and can completely realize unattended online oil filtering. The running status can be observed through the indicator light.
  • The heating system is the optimized pipeline design, to ensure the unique heating and stable oil temperature. Avoid overheating and carbonization of oil.
  • Equipped with comprehensive protection mechanisms, such as power protection, pressure protection, and motor overload protection. If any protection mechanism is triggered, the machine will stop working automatically.
  • High-quality filter elements and link sealing materials with corrosion resistance, high-temperature resistance, high mechanical strength, etc. are selected. The vacuum pump and oil transfer pump are of high-quality brands, and the seals are treated with professional technology, with no leakage, low operating noise, and long service life.

| Flow Chart

| Structure Drawing

| Specifications

ItemUnitTYA-10TYA-20TYA-30TYA-50TYA-100TYA-150TYA-200TYA-300
Flow RateL/min10203050100150200300
Vacuum DegreeMPa-0.06 ~ -0.095
Working PressureMPa≤0.4
Temperature0 ~ 100
Power Supply 3phase,50Hz, 380V (Can be designed)
Working NoisedB(A)≤75≤75≤75≤78≤78≤78≤80≤82
Heating power(optiona)kW1821243042516572
Total powerKW2123263346567080
Inlet/outlet calibermm2525253249627584
WeightKg4004505005507508509501000
DimensionLengthmm15001500150016001750190019002100
Widthmm10001050105011501250160017001700
Heightmm12001600160017001800195020002100
Parameter After Purification
Demulsification value minNew oil ≤15min, running oil ≤30min
Impurity contentMicron1-5
Water ContentPPM≤50
Gas Content%≤o.1
CleannessNAS≤5 grade

| Maintenance

After a certain period of running, the machine should be checked to see whether

  • The electrical control system is safe and reliable.
  • The temperature controller is sensitive, reliable and accurate.
  • The oil seals of the pump shaft are broken with leakage.
  • There is any blockage with the running system and any abnormal noise with pumps or related motors.
  • There is any air or oil leakage with the oil running system and at sealing joints.
  • After every 3000 hours running, grease shall be replenished to prevent motors from being burnt.
  • Special vacuum pump oil or lubricating oil N46 should be used for the vacuum pump and oil replaced or replenished if necessary at any time.
  • If the machine will not be used over 1 month, Place the machine in a dry environment with the panel door and all valves closed, and the machine properly protected by a covering.

| Why You Need a TYA-50 Vacuum Hydraulic Oil Purifier?

  • Lubricating oil is a technology-intensive product, a complex mixture of hydrocarbons, and its real application function is the combined effect of complex physical or chemical change processes. The fundamental functions of lubricating oil include general physical and chemical functions, special physical and chemical functions and simulated bench experiments. On various types of machinery, to reduce friction and maintain liquid lubricants for machinery and processed parts, it mainly plays the role of lubrication, cooling, rust prevention, cleaning, sealing and buffering. Lubricating oil accounts for 85% of all lubricating materials, and there are many varieties and brands. At present, the annual consumption in the world is about 38 million tons.
  • Moisture and gas in the air seep into the oil due to system leakage, poor sealing, long-term thermal load of the oil, open oil storage, etc., resulting in water and gas in the oil.
  • Due to the leakage of the system, the entry of particles and dust in the air or the falling off of the system wear and tear, and the operation of the oil under high temperature and water for a long time will inevitably lead to part of the oil cracking and degenerating to separate colloidal substances.
  • During usage, various lubricating oils are exposed to the air or because of their working environment, resulting in the mixing of moisture, gas and metal impurities, which reduces the quality of the oil
  • The functional index of lubricating oil depends to a large extent on the water content, gas content in the oil, impurities in the oil and the pollution degree of the oil. To enhance the lubricating function of the oil, the oil must be dehydrated, degassed, and impurities removed under the rated vacuum degree and temperature. Then it is necessary to use a special WEINENG TYA OIL PURIFIER to filter the lubricating oil, to ensure the function of the lubricating oil.

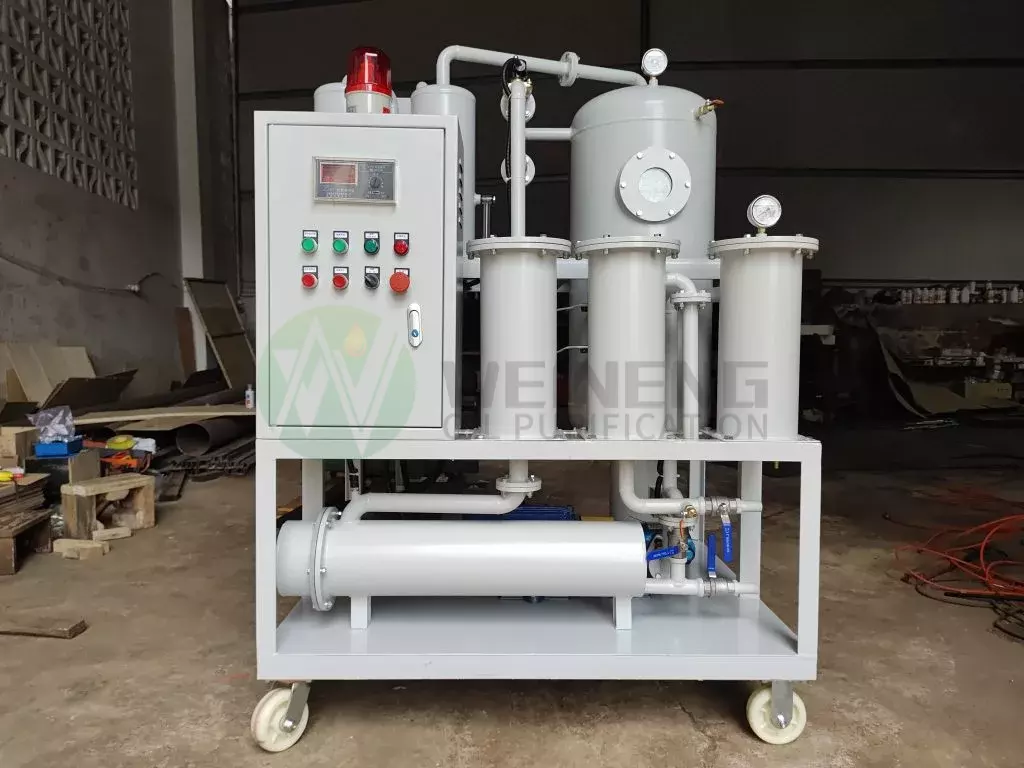

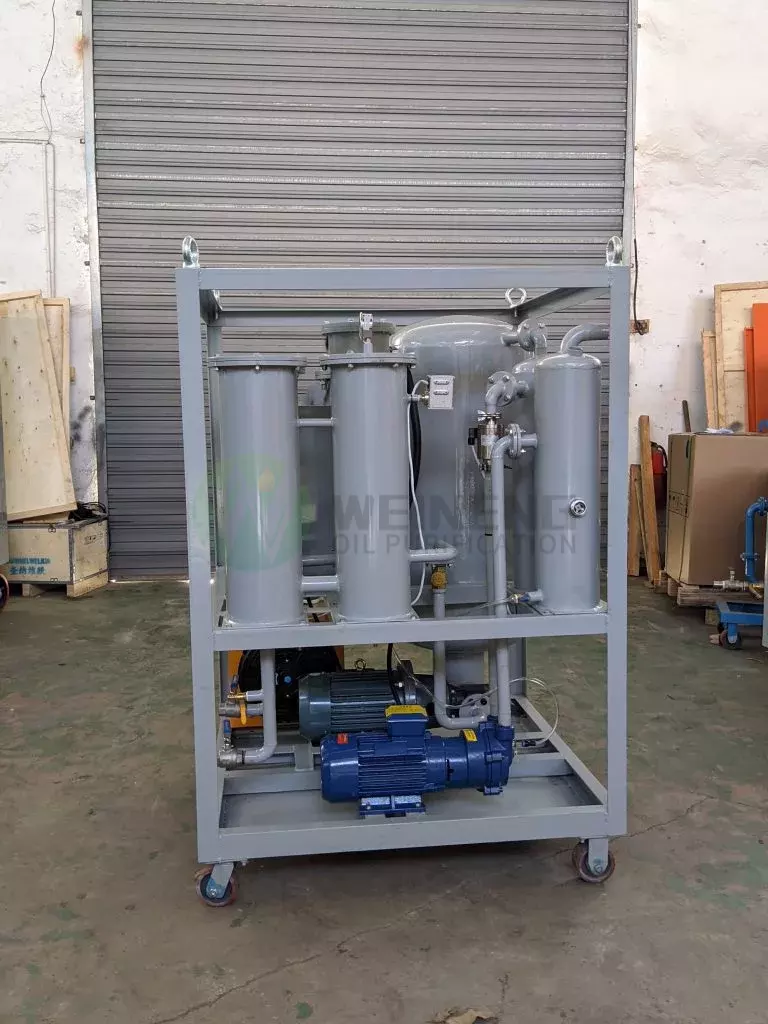

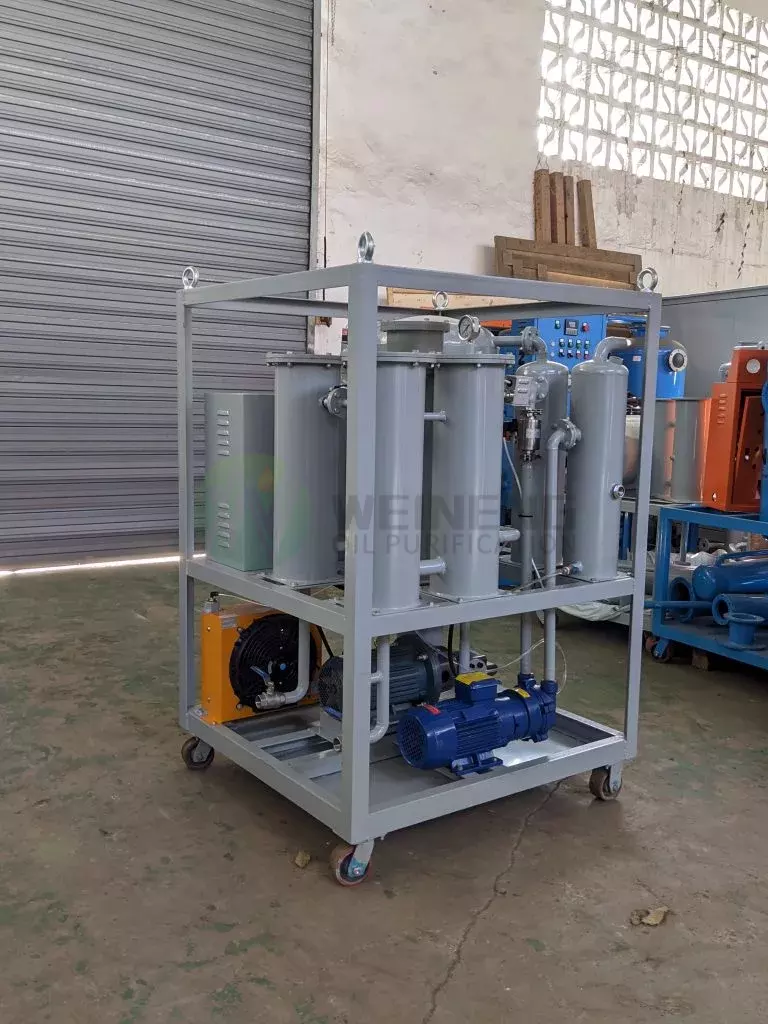

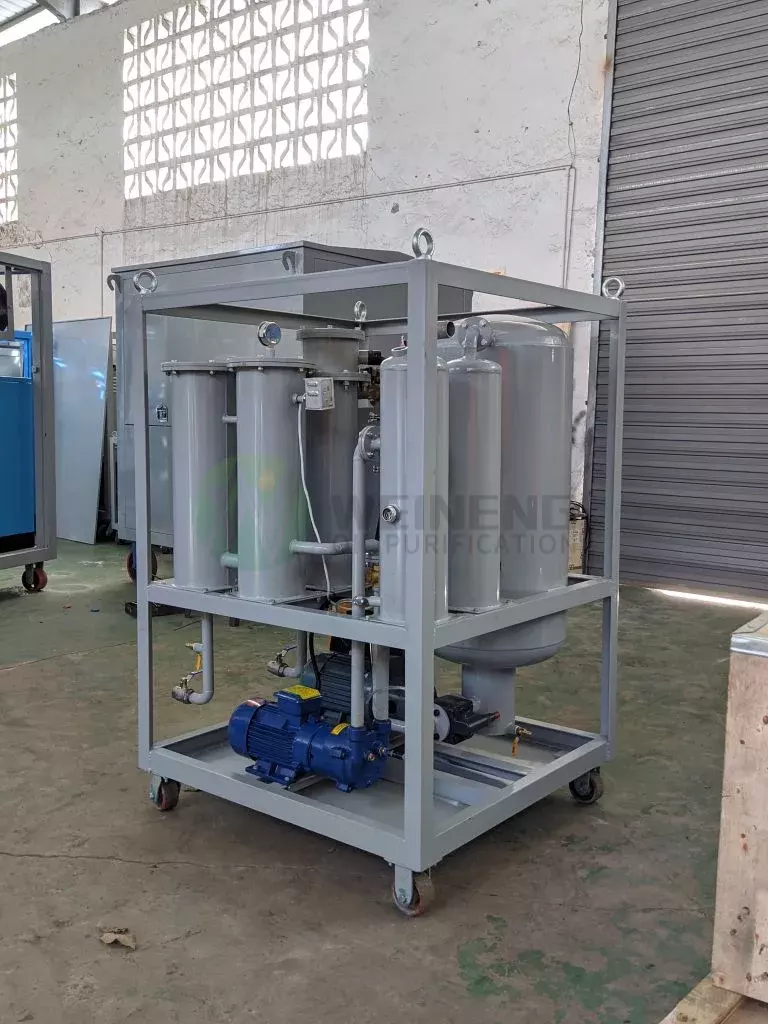

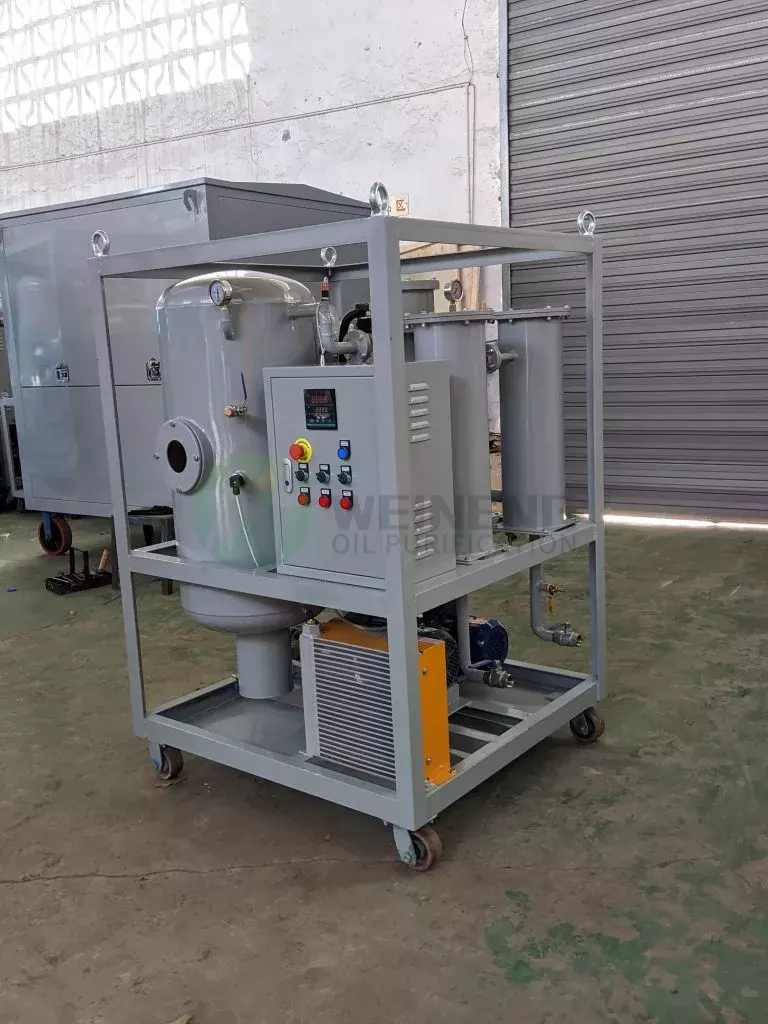

| Machine Picture Display

| Machine Picture Display

| Machine Picture Display
