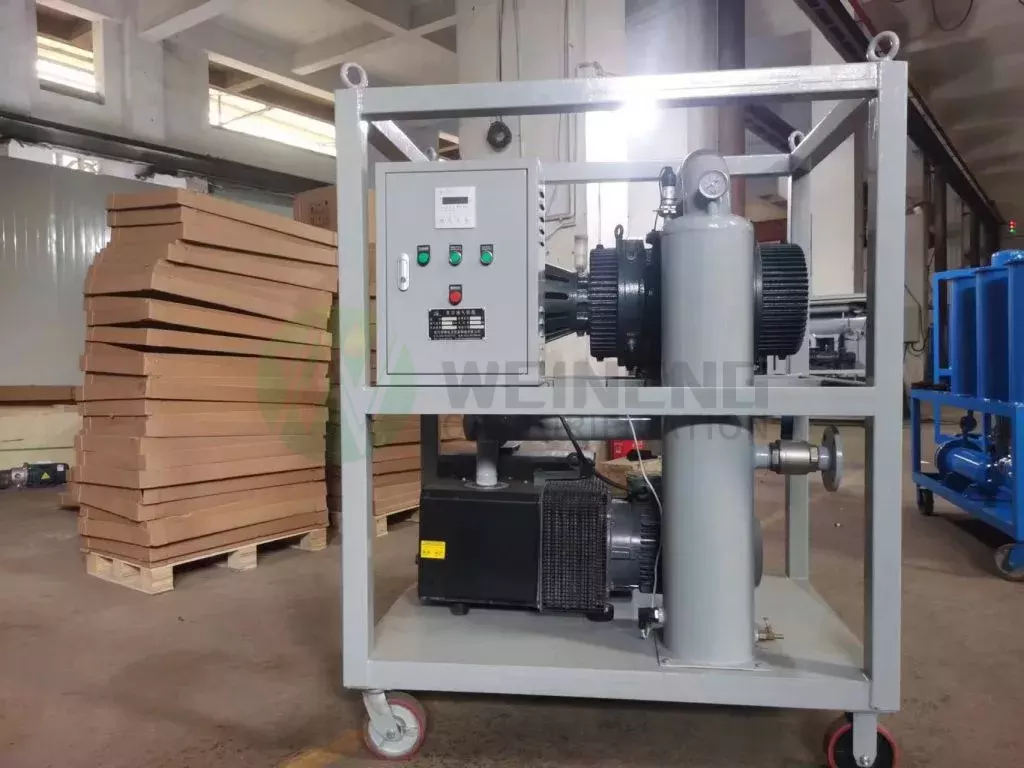

VPS Transformer Vacuum Pumping System
- Widely used in power transformers, GIS vacuum drying, transformer installation vacuum drying, etc;
- Compact design, more convenient for clients to carry machines to different sites;
- Cooperation with international&domestic reputed brands;
- Automatic control system, equipped with comprehensive protection mechanism;
- Capacity 30L/S to 12000L/S or as requested;
- 13 Years of purifier manufacturing experience;
- Customizable;
- 2 years warranty, 7*24 hours technical support and after services.
For product pricing, customization, or other inquiries:
Description
| Applications
- VPS Series Transformer Vacuum Pumping System is widely used in transformer vacuum drying, GIS vacuum drying, transformer installation vacuum drying, etc.
- Vacuum pumping of power transformer and other electrical vacuum equipment in transformer substation, administration of power supply, power generation plant, and transformer manufactory, etc.
- VPS is unsuitable for pumping toxic gas, explosive gas, high-oxygen content gas, high-moisture content gas, and the gas that will react to pump oil or cause an erosive effect on ferrous metal.
| Features

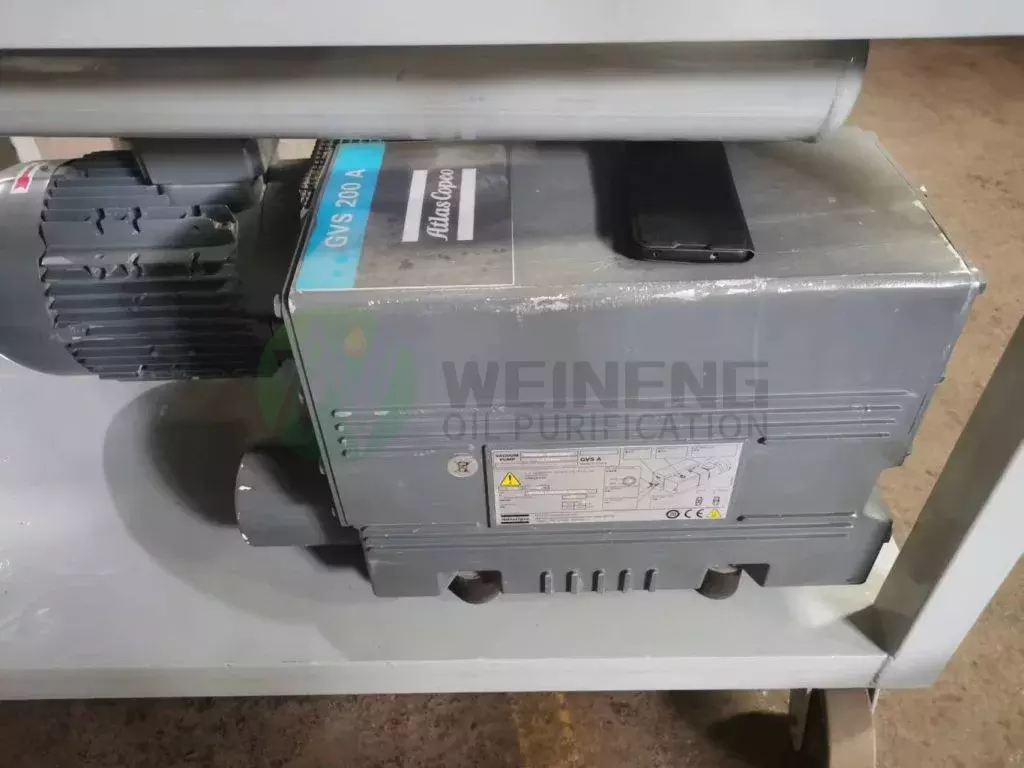

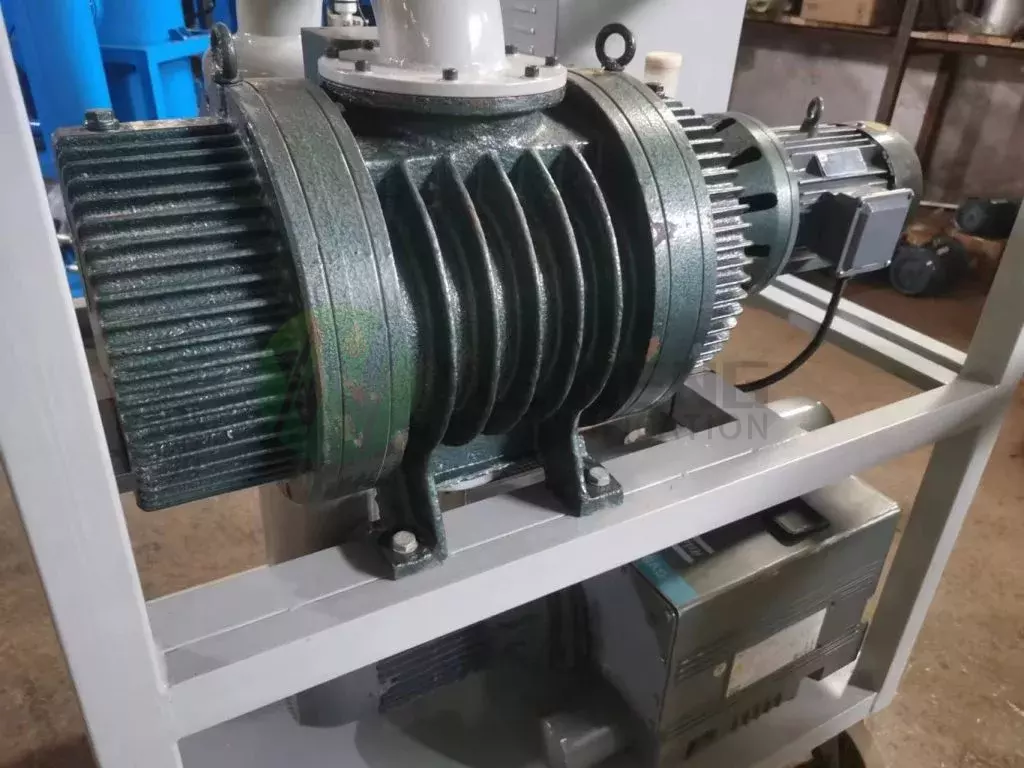

- The machine adopts special Roots pump and vacuum pump, so the vacuum pumping speed and pressure, are better than any other devices.
- Working vacuum range and maximum vacuum degree are superior to other products.

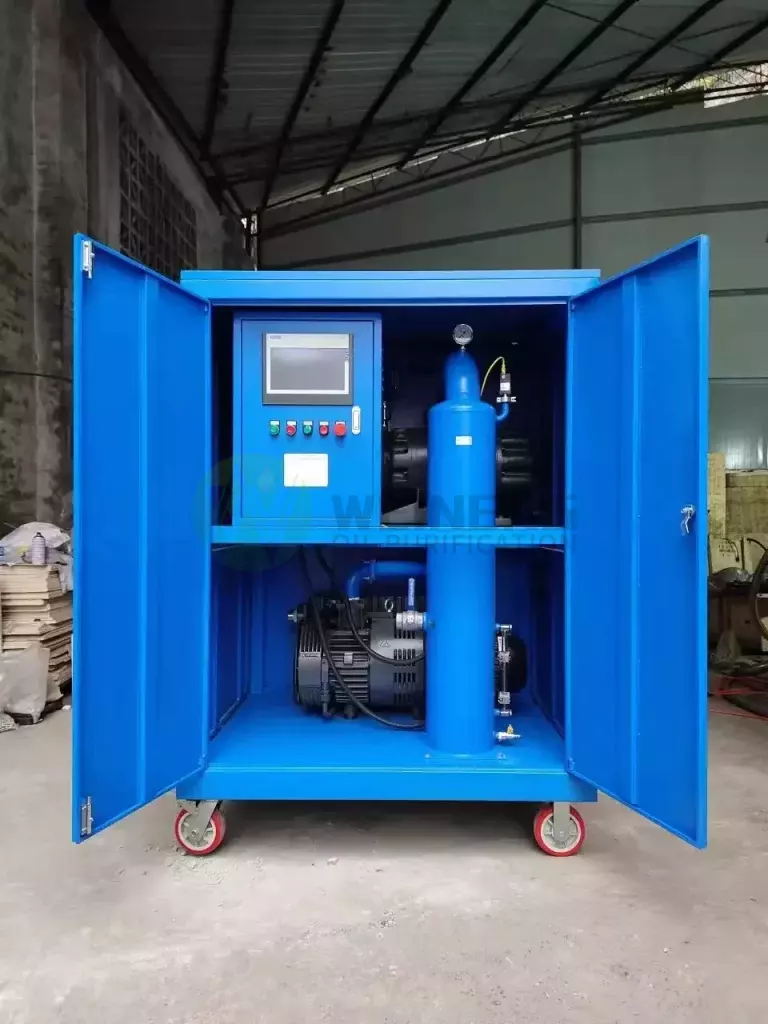

- It’s equipped with a control panel for controlling the operation of pumps.

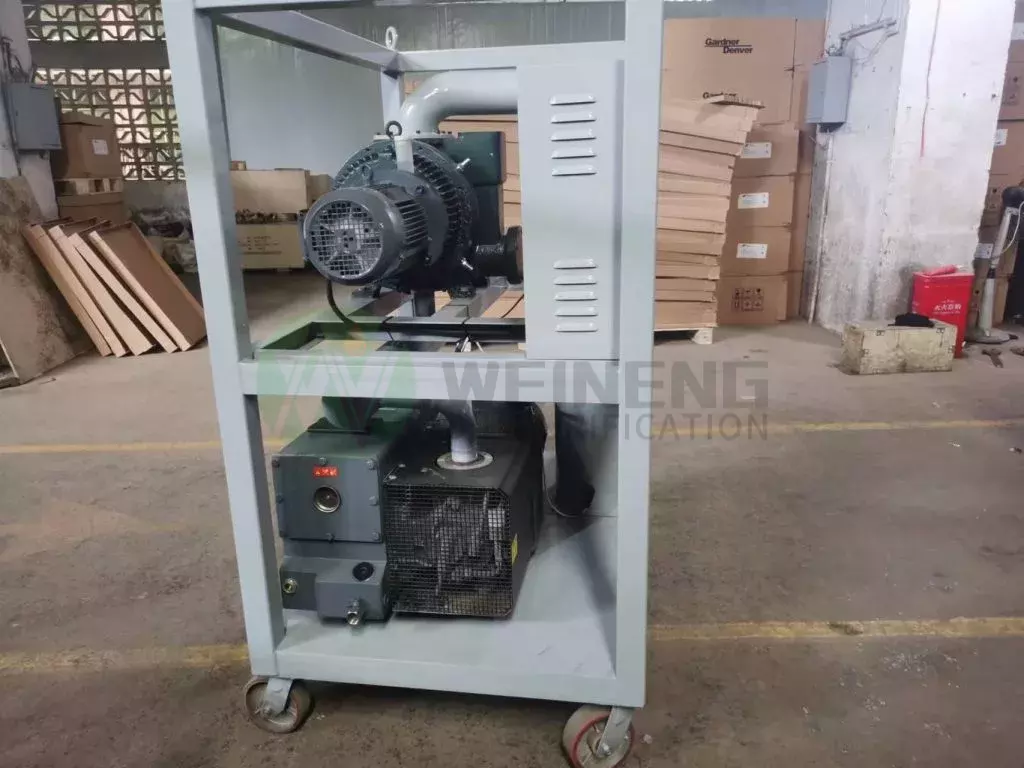

- Consist of necessary high-quality pipelines and valves to operate the system.

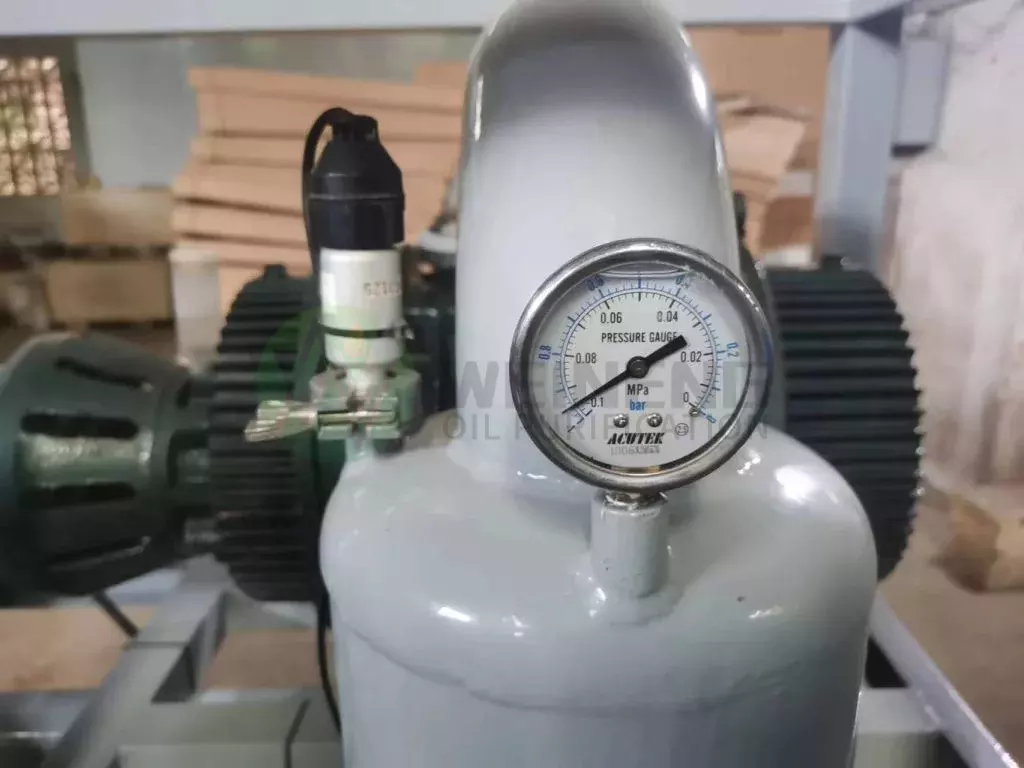

- It is installed with a special vacuum gauge for accurate indication.
- It adopts an automatic vacuum relay for automatic control.
- Stable and reliable operation, low noise, and easy to move.

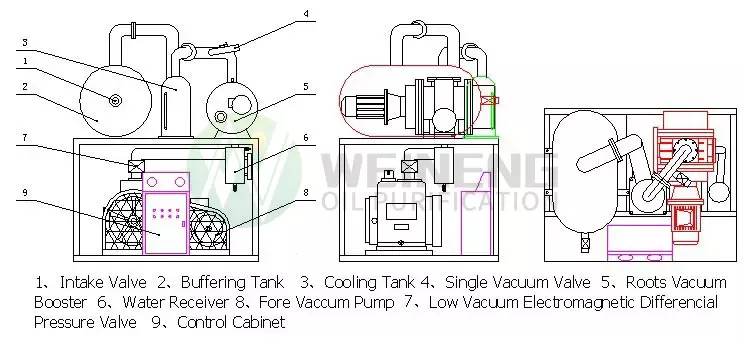

| Structure Drawing
| Specifications
Index | Unit | VPS-30 | VPS-70 | VPS-150 | VPS-300 | VPS-600 | VPS-1200 |
Pumping Speed | L/S | 30 | 70 | 150 | 300 | 600 | 1200 |
Ultimate Vacuum | < 5Pa | ||||||
Working Vacuum | 133Pa | ||||||
Main Pump | ZJP-30 | ZJP-70 | ZJP-150 | ZJP-300 | ZJP-600 | ZJP-1200 | |
Backing Pump | 2X-4 | 2X-8 | 2X-15 | 2X-30 | 2X-70 | 2X-150 | |
Power | KW | 2.5 | 4 | 6.5 | 7 | 11 | 18.5 |
Power Supply | 380V/ 50HZ/ 3PHASE (As per client’s request) | ||||||
Dimension(MM) | Length | 700 | 900 | 1300 | 1300 | 1300 | 1550 |
Width | 500 | 600 | 660 | 660 | 1050 | 1080 | |
Height | 1100 | 1250 | 1580 | 1580 | 1800 | 1900 | |
Weight | KG | 290 | 480 | 650 | 960 | 1250 | 1560 |
| Oil Parameter After Purification
Breakdown Voltage | >60 KV |
Gas Content | ≤0.1% |
Water Content | <10 PPM |
Particle Size | ≤1 ~ 5(no free carbon) |
Acid Value | ≤0.03 mgKOH/g |
Dielectric Loss Factors | tgδ () % ≤0.001 |
Acid Value | ≤0.01 mg koH/g |
